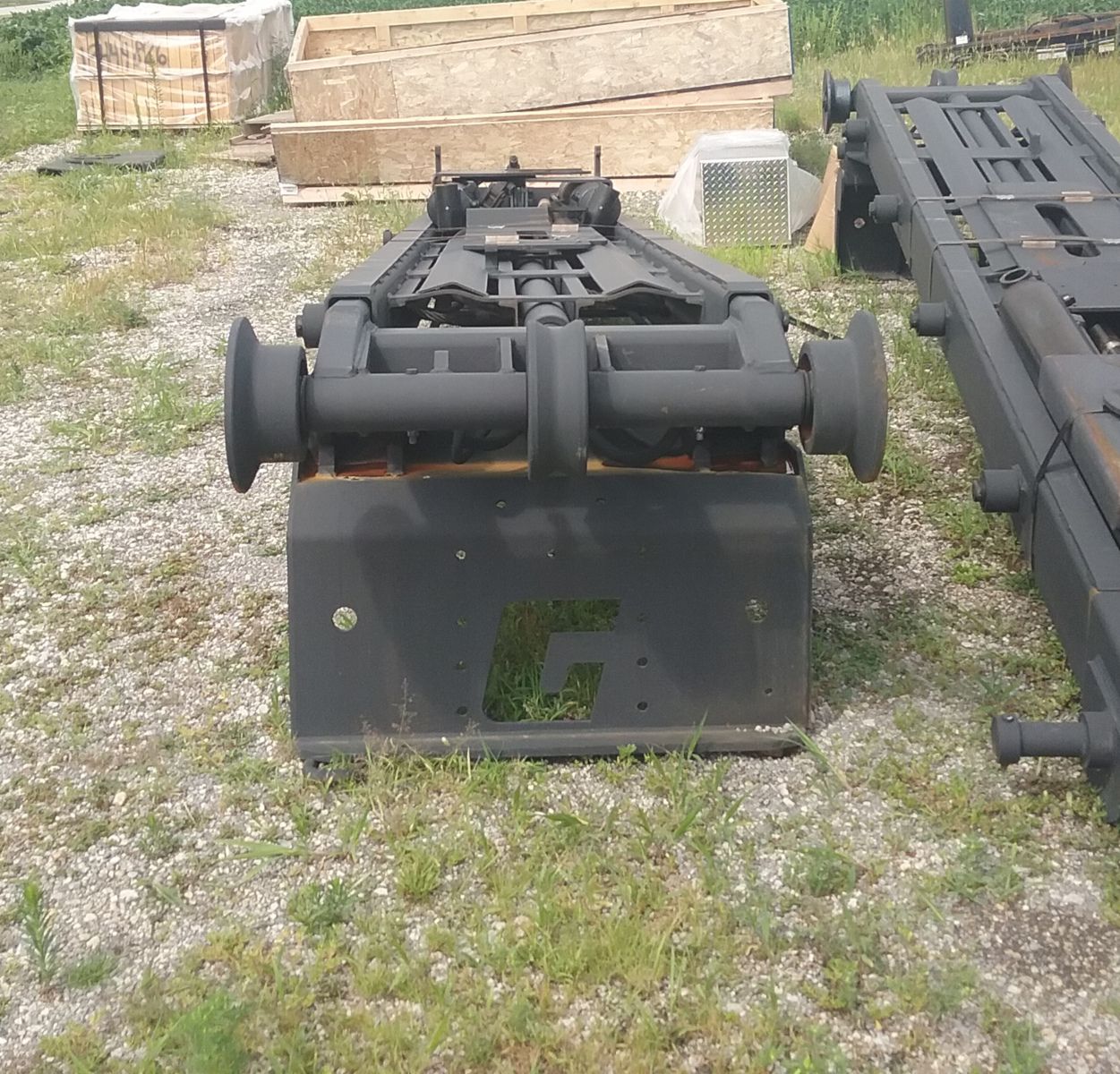

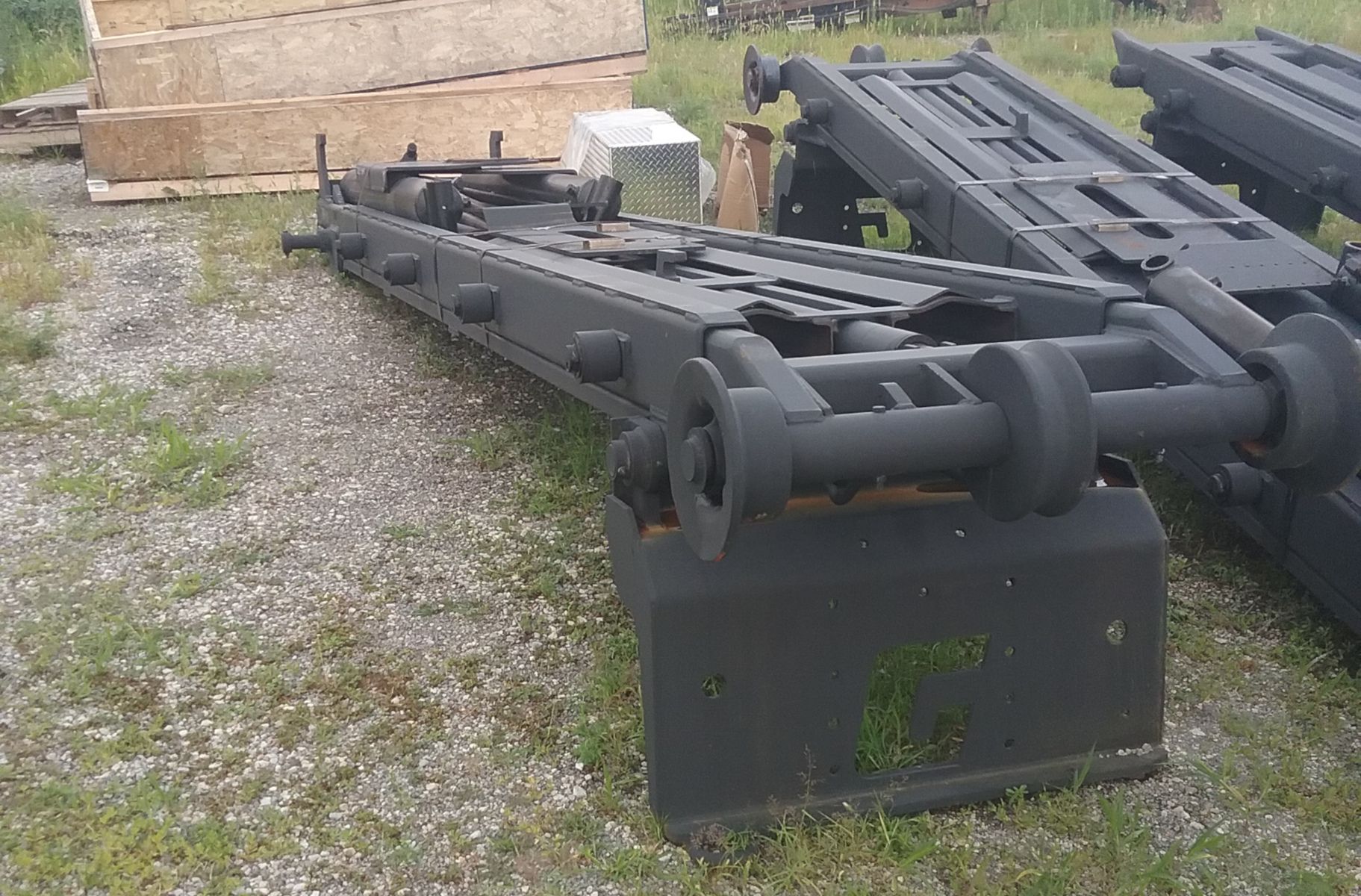

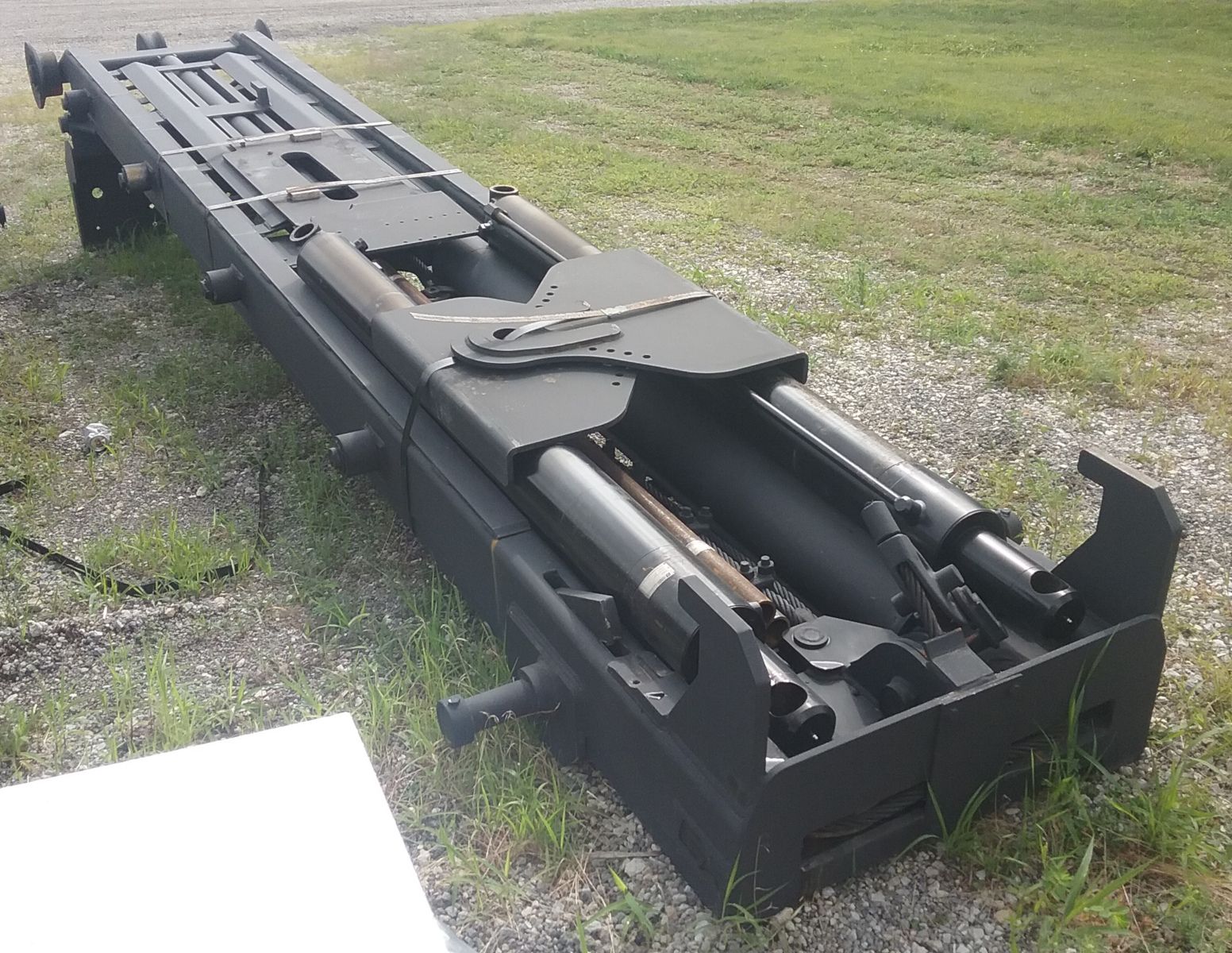

2019 Galbreath Deadlift Tandem Axle Cable Hoist, Model U5-EH-174
- Lower Load Angle, Tail Extends 80"
- Rated LBS: 50K
- Can Size: 18-20'
- 8" X 4" X 1/2" Main Frame
- 3" X 2" X 3/16" Sub Frame
- (2) 6" Single Stage Lift Cylinders (Fwd. Mount)

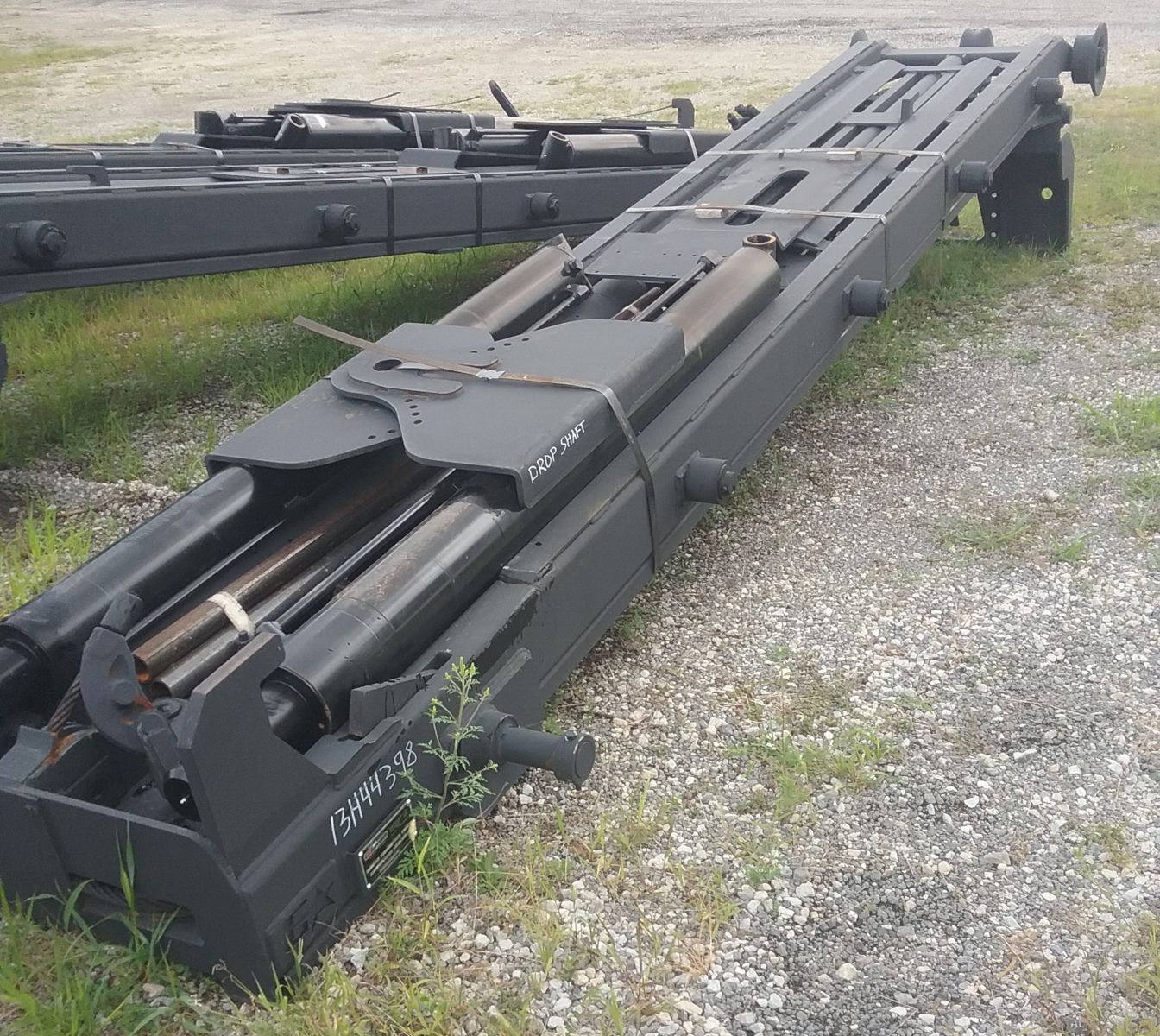

- Lift Cylinder Drop Shaft (If Needed)
- (2) 7" Single Stage Winch Cylinders
- Direct Mount Pump 1" 15 Tooth Rear Ported (1,850 psi)
- Auto Folding Air Assist ICC Bumper
- Mounting Plates & Grade 5 Mounting Bolts (HUCK Bolts Optional)
- 2-3 Spool (when applicable) Manual Outside Control Valve
- (3) Additional Manual Spools - for Integration of Pioneer Strong Arm Rack n' Pinion SARG
- 50GA Side Mount Oil Reservoir w/ Dual Sight & Temp Gauge
- Hydraulic Return Filter 3 Micron; 10 Micron Breather Filter
- 4" OD Grease Grooved Outside Rail Rollers
- Rear Ground Roller
- 10" Grease Grooved Sheaves
- 7/8" Cable w/ Swivel Cable End & Cable End Holder
- Hydraulic Tube Plumbing in Sub-Frame w/ JIC Fittings
- Automatic Roll Over Front Container Safety Lock
- Stationary Rear Hold Downs
- Heavy Duty Casted Ductile Iron Rear Hinge
- DOT approved LED Lighting - Stop, Turn, Reverse & Side Marker Lights
- Pintle Hitch Adaptable Rear Apron w/ Split Bumper
- Plug n' Play Sealed Wiring Harness
- Mud Flaps
- Fenders Not Included
- Inside Air Controls Mounted in Power Tower
- Back Up & Hoist Up Alarm w/ Signal Light in Dash
- Hoist Maintenance Props
- Ship-Outs in Black Primer
- Operations & Maintenance Manual
- 1 yr. limited warranty on Hoist / 2 yr. limited Hydraulic Warranty
- Galbreath Std. Off-Set Tarper Mounting Platform - Includes Protective Valve Cover - For CNG and DEF Tank Interference Applications
